Industrial extraction unit using supercritical CO2

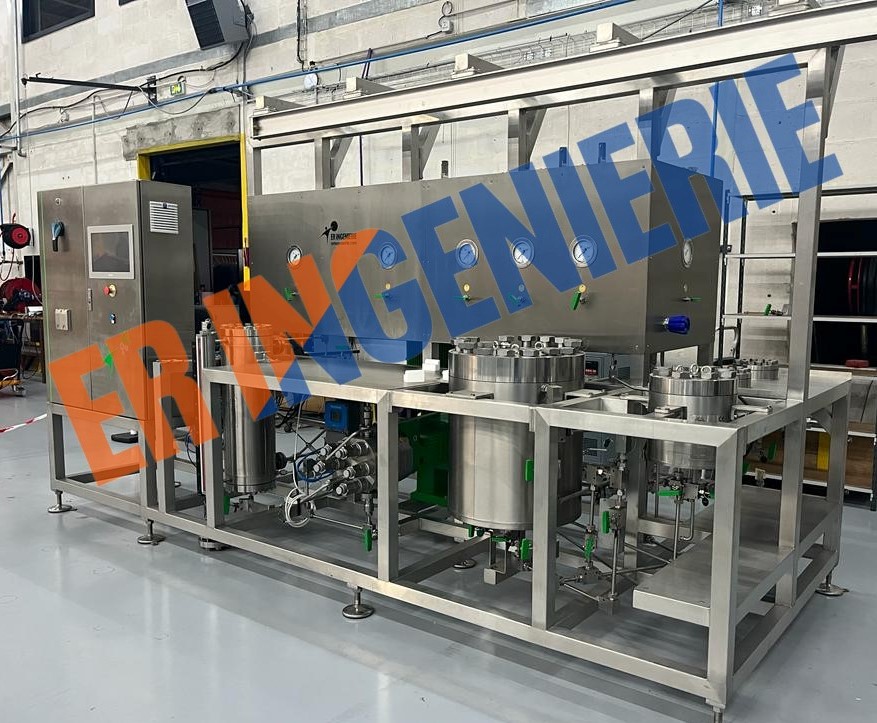

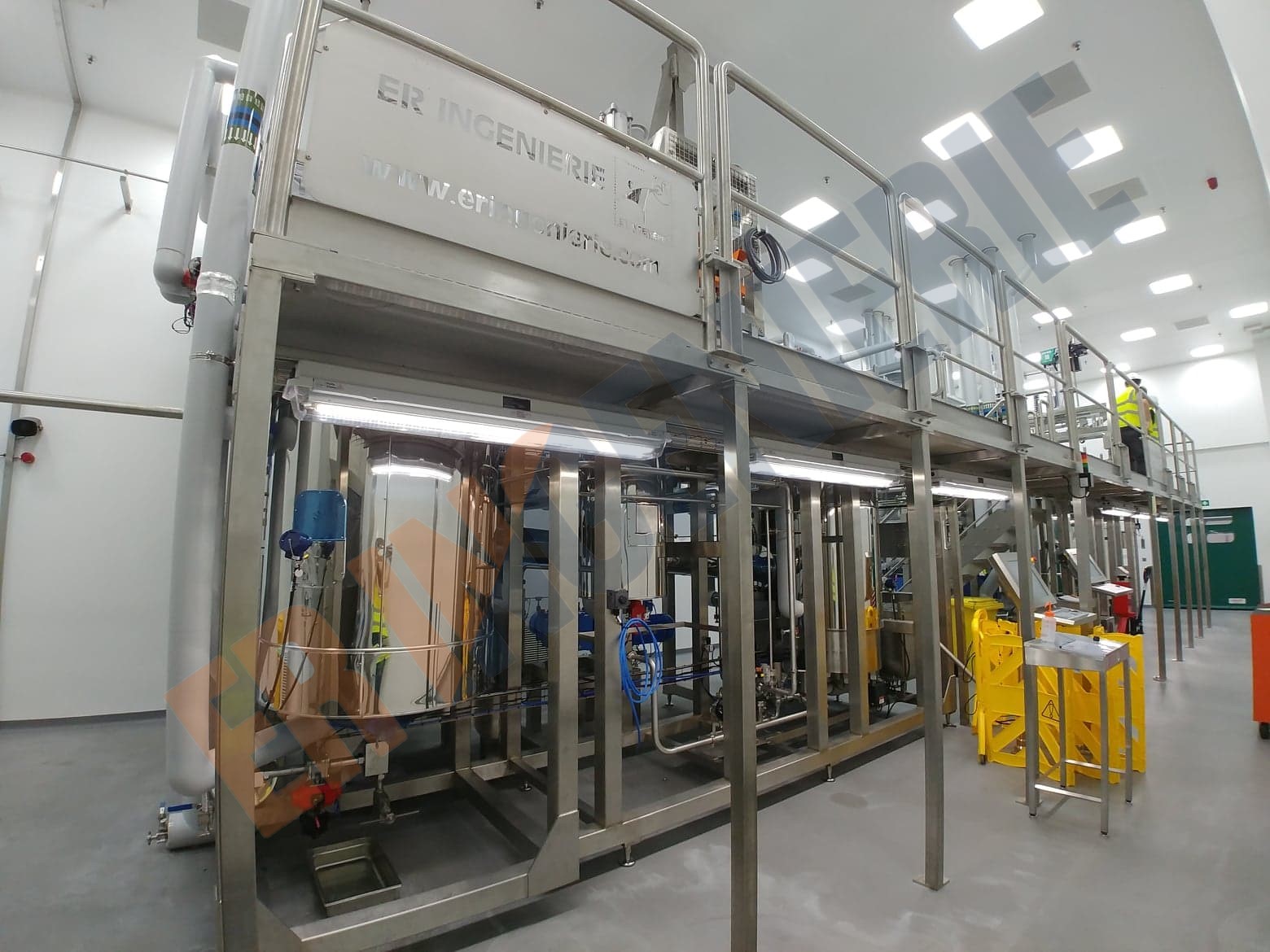

CO2 extraction skid.
It is designed to extract different APIs (pharmaceutical active substances) from a vegetable raw material.

PRINCIPlE:

CO2 extraction skid. It is designed to extract different APIs (pharmaceutical active substances) from a vegetable raw material.

It is mainly composed of:

  • A reserve of CO2,
  • A CO2 pump,
  • An extractor with a basket,
  • A separator,
  • A utility network (compressed air, hot and cold water),
  • A SCADA.

CUSTOMER INFORMATION

Process type

Supercritical and subcritical CO2 extraction.

Business sector

Pharmaceutical industry.

Product characteristics

Vegetable raw material.
Extracted molecules for pharmaceutical use.

Constraints

Cleanability + CIP (cleaning system in place).
Machine must be transportable on truck.

Principle and operation

Supercritical CO2 extraction

It consists in circulating supercritical CO2, under pressure and temperature, through a material, then decompressing to recover the extract or contaminant. At depressurization, CO2 is released in gaseous form (reusable) and the desired compound in liquid or solid form.

CHARACTERISTICS

Dimensions

Height 5.4 m, length 5.2 m, width 4.2 m.

CYCLE TIME

Pharmaceutical regulations (cGMP, FDA, GAMP5, 21CFR part 1). Pressure Equipment Directive (PED) / EC Regulation / ATEX Regulation.

IMPLEMENTATION DEADLINE

12 months.

PRESSURE / FLOW RATE

Max. operating conditions 350 bar / 80 °C.

TANKS VOLUME

A 290 L extractor / A 150 L separator.

CONTROL

Complete inspection of the machine by a notified body / Qualification process according to pharmaceutical standards.
